COMPONENT DESIGN FOR ASSEMBLY
After the final concept presentation, MWDesign will focus on the approved product concept. This will be done primarily through 3D CAD modelling. We will further development the CAD models into precise components incorporating all features from the final concept design. The objective is to develop the design to allow us to create a prototype for testing, before investing in tooling.
Focusing on individual part components, MWDesign will refine the components and design out the cost to enable us to maintain quality while meeting our budget cost. We will begin engineering the parts for the product, focusing on functional aspects of the design.
COMPONENT DESIGN FOR ASSEMBLY
After the final concept presentation, MWDesign will focus on the approved product concept. This will be done primarily through 3D CAD modelling. We will further development the CAD models into precise components incorporating all features from the final concept design. The objective is to develop the design to allow us to create a prototype for testing, before investing in tooling.
Focusing on individual part components, MWDesign will refine the components and design out the cost to enable us to maintain quality while meeting our budget cost. We will begin engineering the parts for the product, focusing on functional aspects of the design.
COMPONENT DESIGN FOR ASSEMBLY
After the final concept presentation, MWDesign will focus on the approved product concept. This will be done primarily through 3D CAD modelling. We will further development the CAD models into precise components incorporating all features from the final concept design. The objective is to develop the design to allow us to create a prototype for testing, before investing in tooling.
Focusing on individual part components, MWDesign will refine the components and design out the cost to enable us to maintain quality while meeting our budget cost. We will begin engineering the parts for the product, focusing on functional aspects of the design.
Intaks Adjustable Access Stairs
Intaks approached MWDesign with a challenge: to create a versatile and compact stair system that integrates seamlessly with their existing scaffolding components. The goal was to design stairs that could fold flat for easy transport and storage, making them ideal for use with Intaks' scaffolding trucks.
Key Requirements:
-
Portability — The stairs needed to be lightweight, allowing two people to carry them and fit easily on the back of scaffolding trucks.
-
Compact Design — A foldable feature was crucial for saving space when transporting a full load of scaffolding components.
-
Adjustability — The stairs required adjustable angles to accommodate both single and double-story setup
-
.Cost-Effectiveness — They needed to be a more affordable alternative compared to existing market options.
-
Aesthetic Integration — The design had to align visually with Intaks' existing product range and complement their other fittings.
-
Durability — The stairs needed to endure rough handling and various weather conditions (rain, mud, wind, sun) while being easily loaded and unloaded from trucks.
-
Safety — The design required a continuous handrail for safety, along with a landing platform for external access applications.
-
Compliance — The stairs had to meet NZ and Australian safety standards, including deflection and load testing.
Design Solution:

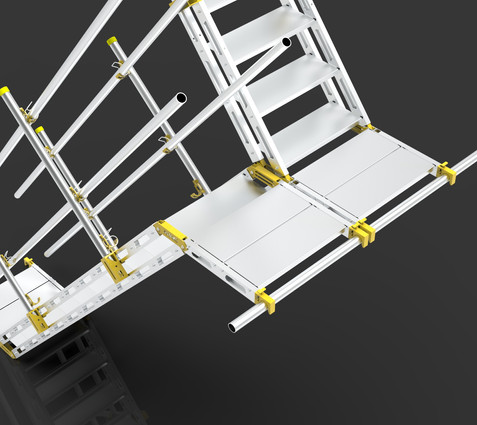

Our approach featured a robust yet lightweight construction using aluminium extrusions for the stair treads and stringers. The treads are secured to the stringers via a rod and circlip system with nylon bushes, ensuring easy assembly. Both the top and bottom landings are removable, enabling flat transport and storage. These landings share the same stringer profiles for support and use custom-designed steel locking hooks with a spring-loaded pin for secure attachment to the Intaks scaffolding system.
The stairs include a steel pivot support bracket at both the top and base, allowing for smooth angle adjustments. Additionally, a specially designed handrail bracket enables the installation of continuous handrail posts, enhancing user safety and stability.
Intaks' commitment to efficiency and safety is reflected in this design, ensuring that their customers can set up quickly and rely on a product that meets rigorous safety standards.
